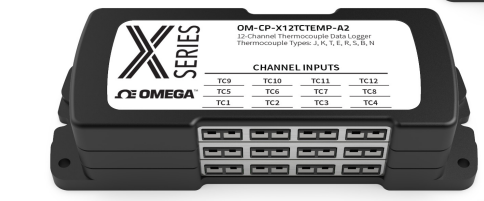

OMEGA OM-CP-X12TCTEMP-A2 Multi Channel Thermocouple Loggers (-20 °C to +60 °C, 12CH)

INTERNAL CHANNELS

Temperature Range: -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Resolution: 0.01 °C (0.018 °F)

Calibrated Accuracy: ±0.5 °C (0 °C to 50 °C)

REMOTE CHANNELS

Thermocouple Types: J, K, T, E, R, S, B, N

Thermocouple Connection: Female subminiature (SMP)

Cold Junction Compensation: Automatic, based on internal channel

Maximum Thermocouple Resistance: 1000 Ω, <100 Ω recommended

GENERAL

Memory (All channels enabled): 174,677 readings per channel

Start Modes: Software programmable immediate start or delay start, up to 6 months in advance

Real Time Recording: May be used with PC to monitor and record data in real time

LEDs: 1 per channel and 2 status LEDs

Reading Rate: 4 Hz up to 1 reading every 24 hours

Calibration: Digital calibration through software

Calibration Date: Automatically recorded within device

Battery Type: 9 V lithium battery included, user replaceable

Battery Life: 18 months typical

Data Format: Date and time stamped °C, °F, K, °R, mV, V

Time Accuracy: ±1 minute/month

Computer Interface: USB-A to micro USB cable (included); 460,800 baud

Operating System Compatibility: Windows XP SP3/7/8/10

Software Compatibility

Standard Software version 4.2.17.0 or later

Secure Software version 4.2.16.0 or later

Operating Environment:

-20 °C to +60 °C (-4 ºF to +140 ºF),

0 %RH to 95 %RH non-condensing

Dimensions: 2.70 in x 7.25 in x 1.68 in (65.6 mm x 184.2 mm x 42.7 mm)

Weight: 20 oz (580 g)

Enclosure: Black anodized aluminum
