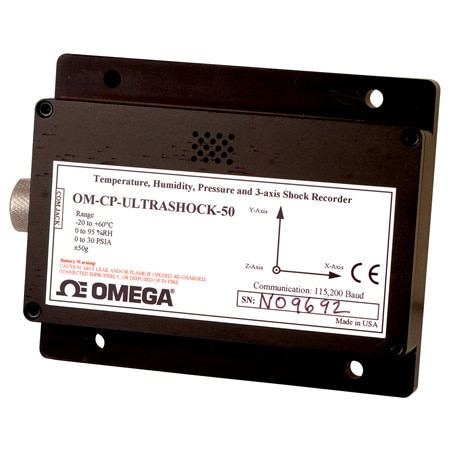

OMEGA OM-CP-ULTRASHOCK-5 Humidity, Temperature, Pressure and Tri-Axial Shock Data Logger Part (0 psi, Absolute, 1/4 in)

Width: 26 mm

Height: 111 mm

Length: 89 mm

Memory: 174,762 Readings

Weight: 341 g

Software: Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)

Approvals: CE

Baud Rate: 115200

Materials: Aluminum

Resolution: Pressure : 0.002 psi, Humidity : 0.1% RH, Temperature : 0.1°C, Acceleration : 0.01 g

Calibration: Digital calibration through software and automatically recorded within device

Start Modes: Delayed Start, Immediate Start

Battery life: up to 170 hr

Accuracy Note: Calibration Accuracy : Humidity : ±3 %RH (±2 %RH typical at 25 °C), Pressure : ±1.0% FSR 25°C; ±0.2% typical, Temperature : ±0.5°C (0 to 50°C); Time Accuracy : ±1 min per month at 2 to 30°C

Pressure Type: Absolute

Pressure, Max: 0 psi

Sampling Rate: 1.953 msec

Time Accuracy: ±1 minute/month

Data Interface: USB

Humidity Range: 0 to 95% RH non-condensing

Data protection: Access by password

Millivolt Range: N/A

Measurement Type: Temperature, Humidity, Pressure, Shock

measurement-type: Temperature, Humidity, Pressure, Shock

Supply Power Type: Battery

Acceleration Range: ± 5 g

Frequency Response: 0 to 400 Hz

Sampling Rate Note: 1.953 ms/512 Hz 64 Hz to 5 minutes for shock, selectable in software. Temperature, pressure and humidity sampled approximately every 2 seconds at intervals shorter than 2 seconds. Otherwise, sampled at the reading rate.

Real Time Recording: Device can be used with PC to monitor and record instantaneous measurements in real-time

Calibration Accuracy: Humidity : ±3% RH, Temperature : ±0.5 °C, Pressure : ±1%, Accelerometer : ±0.2 g

Battery Size and Type: Alkaline 9V

Number of Measurements: 6

Process Connection Size: 1/4 in

Process Connection Type: N/A

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Measuring Temperature Range, Max: 60 °C

Measuring Temperature Range, Min: -20 °C

Datasheet
