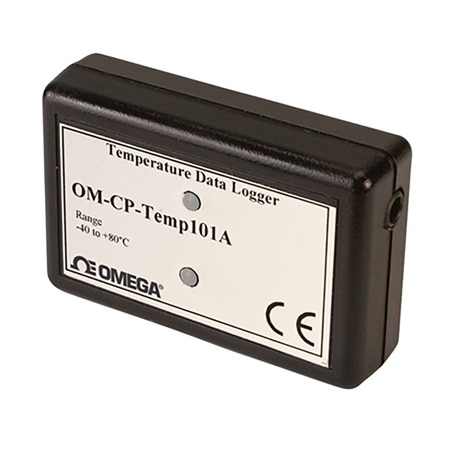

OMEGA OM-CP-TEMP101A Temperature Data Logger, Part of the NOMAD Family (Humidity, Pressure, Temperature, USB, ± 0.5 °C)

Width: 36 mm

Height: 16 mm

Length: 56 mm

Memory: 2000000

Weight: 24 g

Alarm Note: Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits

Calibration: Digital calibration through software

Form factor: Handheld

Memory Note: 2,000,000 readings; software configurable memory wrap; 660,000 readings in multiple start/ stop mode

Samples,Max: 670000

Start Modes: Adjustable Delay Start, Immediate Start, Push-button

Battery life: up to 10 yr

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month @ 20 °C

Data Interface: USB

LED Indicators: Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode; Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition

Measurement Type: Humidity, Pressure, Temperature

Supply Power Type: Battery

Sampling Rate Note: 1 reading every second to 1 every 24 hours.

Data Interface Note: USB (interface cable required); 115,200 baud

Real Time Recording: The device may be used with PC to monitor and record data in real-time

Temperature Accuracy: ± 0.5 °C

Battery Size and Type: 3.6V Li-ion

Number of Measurements: 1

Relative Humidity, Max: 0.95

Relative Humidity, Min: 0%

Temperature Resolution: 0.01 °C

Temperature Sensor Type: RTD

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C

Temperature Measurement, Max: 80 °C

Temperature Measurement, Min: -40 °C

Temperature Sensor Type Note: Precision RTD Element
