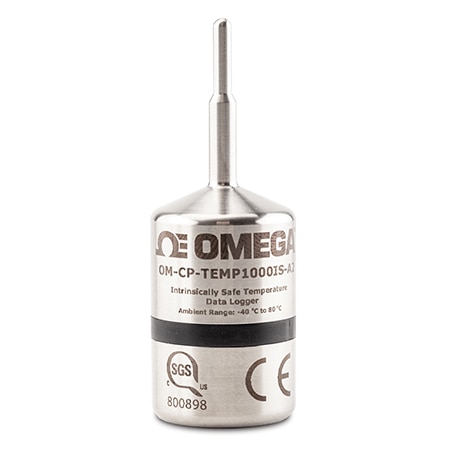

OMEGA OM-CP-TEMP1000IS-A2 Intrinsically Safe Temperature Data Logger (Temperature, USB, ± 0.5 °C)

Height: 2.66 in

Memory: 65536

Weight: 60 g

Diameter: 0.97 in

Materials: 316 Stainless Steel

Calibration: Digital calibration through software

Form factor: Handheld

Samples,Max: 650000

Start Modes: Adjustable Delay Start, Immediate Start

Weight Note: 1 inch probe: 2.1 oz (60 g) 2 inch probe: 2.4 oz (68 g) 5.25 inch probe: 2.7 oz (76 g) 7 inch probe: 2.8 oz (78 g)

form-factor: Handheld

Battery life: up to 2 yr

Probe Length: 1 in

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: 10 seconds / month 0 °C to 50 °C

Data Interface: USB

Measurement Type: Temperature

Supply Power Type: Battery

Sampling Rate Note: 1 reading every second to 1 every 24 hours.

Data Interface Note: Docking Station to USB (Sold Seperately)

Real Time Recording: May be used with PC to monitor and record data in real time

Temperature Accuracy: ± 0.5 °C

Additional Features 1: SGS, FM, Intrinsically Safe

Battery Size and Type: 3.6V Li-ion

Number of Measurements: 1

Relative Humidity, Max: 1

Relative Humidity, Min: 0%

Software Compatibility: Windows XP SP3/7/8/10

Temperature Resolution: 0.01 °C

Temperature Sensor Type: RTD

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C

Relative Humidity Accuracy: ± 3% RH

Temperature Measurement, Max: 80 °C

Temperature Measurement, Min: -40 °C

Temperature Sensor Type Note: Resistance Temperature Detector
