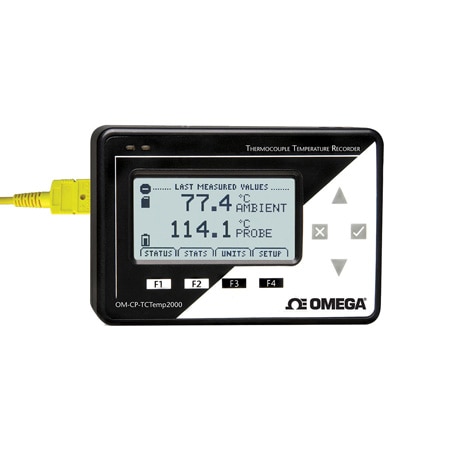

OMEGA OM-CP-TCTEMP2000 Thermocouple Temperature Data Logger with LCD Display (Temperature, USB, ± 0.5 °C)

Width: 84 mm

Length: 122 mm

Memory: 131071

Weight: 440 g

Enclosure: Aluminum

Calibration: Digital calibration through software

Form factor: Handheld

Memory Note: 131,071 readings per channel; 262,143 total readings; software configurable memory wrap

Samples,Max: 130000

Start Modes: Adjustable Delay Start

Battery life: up to 1 yr

Display Type: LCD

Sampling Rate: 0.5 Hz (2 seconds between updates)

Time Accuracy: ± 1 minute/month (at 20 to 30°C)

Data Interface: USB

Measurement Type: Temperature

Display Type Note: 63 x 35 mm

Supply Power Type: Battery

Sampling Rate Note: 1 reading every 2 seconds to 1 every 24 hours

Data Interface Note: PC serial or USB (interface cable required); 115,200 baud

Temperature Accuracy: ± 0.5 °C

Battery Size and Type: Li-ion, 9V

Electrical Connection: Sub-D Female Miniature Connector

Number of Measurements: 1

Relative Humidity, Max: 0.95

Relative Humidity, Min: 0%

Software Compatibility: Windows® XP/VISTA/7 and 8 (32- and 64-bit)

Temperature Resolution: ± 0.1 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Relative Humidity Accuracy: ± 3% RH

Temperature Measurement, Max: 60 °C

Temperature Measurement, Min: -20 °C
