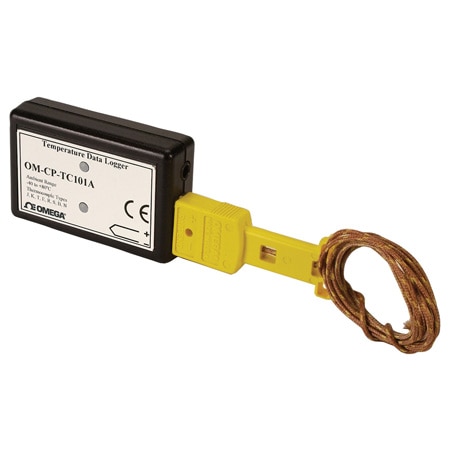

OMEGA OM-CP-TC101A Ambient Temperature and Thermocouple Data Logger, NOMAD Family (Temperature, USB)

Memory: 1000000

Weight: 24 g

Materials: ABS

Stop Modes: Manual Through Software

Alarm Delay: Programmable time delay

Form factor: Handheld/Wall Mount

Memory Note: 1,000,000 readings;software configurable memory wrap 500,000 readings in multiple start/stop mode or trigger settings mode

Samples,Max: 1000000

Start Modes: Immediate Start

form-factor: Handheld/Wall Mount

Battery life: up to 10 yr

Memory Modes: Yes

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month

Data Interface: USB

LED Indicators: Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode

Recorder Width: 16 mm

Waterbox Depth: 39 mm

Waterbox Width: 148 mm

Recorder Height: 36 mm

Recorder Length: 56 mm

Waterbox Height: 74 mm

Measurement Type: Temperature

Supply Power Type: Battery

Operating Humidity: 0 to 95% RH

Sampling Rate Note: 1 reading every second to 1 every 24 hours.

Data Interface Note: USB (interface cable required); 115,200 baud

Real Time Recording: The device may be used with PC to monitor and record data in real-time

Battery Size and Type: 3.6V Li-ion

Electrical Connection: Sub-D Female Miniature Connector

Number of Measurements: 2

Software Compatibility: Windows® XP/VISTA/7 and 8 (32- and 64-bit)

Temperature Resolution: 0.1 °C

Process Temperature, Max: 80 °C

Process Temperature, Min: -40 °C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C

Thermocouple Resistance, Max: 100 Ω

Datasheet
