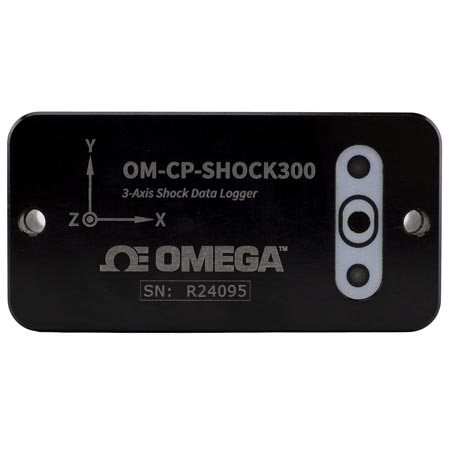

OMEGA OM-CP-SHOCK300 Environmental and Tri-Axial Shock Data Loggers (Shock, 1/4 in)

Width: 33 mm

Height: 86 mm

Length: 43 mm

Memory: 3,593,358 Readings

Weight: 227 g

Software: Standard Software version 4.2.15.0 or later Secure Software version 4.2.14.0 or later, Windows XP SP3/7/8/10

Approvals: CE

Materials: Aluminum

Resolution: Acceleration : 0.02 g , 0.05 g, 0.2 g

Calibration: Digital calibration through software and automatically recorded within device

Memory Note: 3,593,358 readings (598,893 per channel, all channels in use)

Start Modes: Delayed Start, Immediate Start

Battery life: up to 3 mo

Accuracy Note: Time Accuracy : 10 seconds/month (at 0 °C to 50 °C)

Pressure Type: N/A

Pressure, Max: 0 psi

Sampling Rate: 1024 Hz (1024 updates/second)

Time Accuracy: 10 seconds/month

Data Interface: USB

Humidity Range: 0 to 95% RH non-condensing

Data protection: Access by password

Millivolt Range: N/A

Measurement Type: Shock

Enclosure Ratings: IP64

Supply Power Type: Battery

Acceleration Range: ± 15 g , ± 100 g , ± 300 g

Calibration Option: NIST

Frequency Response: >1000 Hz (15 g), >500 Hz (100 g, 300 g)

Sampling Rate Note: 1024 Hz to 5 minutes, selectable in software.

Real Time Recording: May be used with PC to monitor and record data in real time at a 1 second sample rate

Battery Size and Type: Li-ion

Number of Measurements: 3

Process Connection Size: 1/4 in

Process Connection Type: N/A

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
