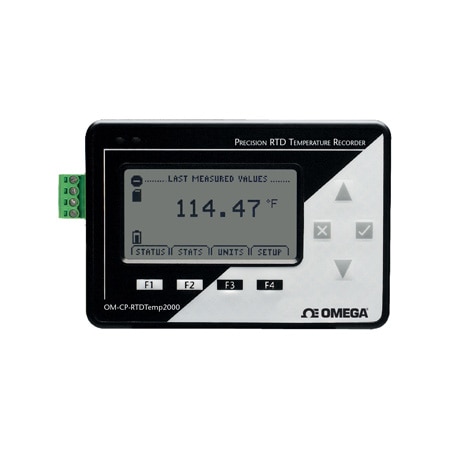

OMEGA OM-CP-RTDTEMP2000 Precision RTD Temperature Data Logger with Display (Temperature)

Width: 84 mm

Height: 32 mm

Length: 122 mm

Memory: 174762

Weight: 440 g

Enclosure: Aluminium

Calibration: Digital calibration through software

Form factor: Benchtop

Memory Note: 174,762 total readings

Samples,Max: 175000

Start Modes: Adjustable Delay Start, Immediate Start

Battery life: up to 1 yr

Display Type: LCD

Sampling Rate: 0.5 Hz (2 seconds between updates)

Time Accuracy: ± 1 minute/month

Waterbox Depth: 39 mm

Waterbox Width: 148 mm

Waterbox Height: 74 mm

Measurement Type: Temperature

Display Type Note: DOT-Matrix LCD , 63 x 35 mm

Supply Power Type: Battery

Sampling Rate Note: 1 reading every 2 seconds to 1 every 24 hours

Data Interface Note: PC serial or USB (interface cable required);115,200 baud

Battery Size and Type: Li-ion, 9V

Electrical Connection: Screw Terminal

Number of Measurements: 1

Relative Humidity, Max: 0.95

Relative Humidity, Min: 0%

Temperature Resolution: 0.01 °C

Process Temperature, Max: 850 °C

Process Temperature, Min: -200 °C

Probe Calibrated Accuracy: ± 0.05°C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Datasheet
