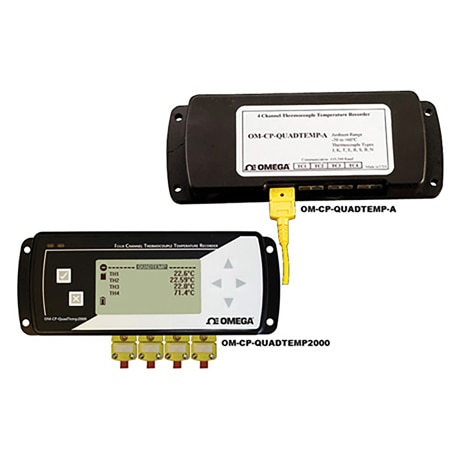

OMEGA OM-CP-QUADTEMP-A 4-Channel Thermocouple Data Logger, Part of the NOMAD® Family (Temperature, USB, ± 1.5 °C)

Width: 183 mm

Height: 26 mm

Length: 68 mm

Memory: 500000

Weight: 430 g

Form factor: Handheld/Wall Mount

Memory Note: 500,000 readings per channel (individual channels can be disabled to increase memory)

Samples,Max: 500000

Battery life: up to 18 mo

Sampling Rate: 4 Hz (4 updates/second)

Time Accuracy: ± 1 min/month when RS232C port is not in use

Data Interface: USB

Measurement Type: Temperature

Supply Power Type: Battery

Data Interface Note: PC serial, USB, RS-232C COM, 115,200 baud

Real Time Recording: Device may be used with PC to monitor and record data in real time

Temperature Accuracy: ± 1.5 °C

Additional Features 1: NIST Traceable Calibration

Battery Size and Type: Li-ion

Electrical Connection: Sub-D Female Miniature Connector

Number of Measurements: 4

Relative Humidity, Max: 0.95

Relative Humidity, Min: 0%

Software Compatibility: Windows® XP/VISTA/7 and 8 (32- and 64-bit)

Temperature Sensor Type: Thermocouple

Process Temperature, Max: 60 °C

Process Temperature, Min: -20 °C

Thermocouple Resistance, Max: 1000 Ω

External Temperature Resolution: J, K, T, E, n: 0.1°C R, S, B: 0.5°C

Internal Temperature Resolution: 0.05°C

Internal Channel Calibrated Accuracy Note: ± 0.5°C
