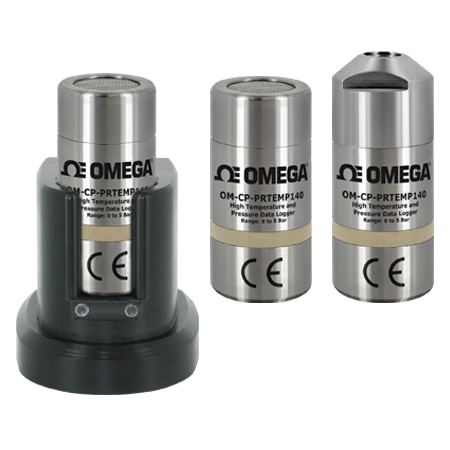

OMEGA OM-CP-PRTEMP140-NPT Submersible High Temperature and Pressure Data Logger (Pressure, Temperature, USB, ± 0.2 °C)

Length: 50.2 mm

Memory: 32767

Weight: 90 g

Stop Modes: Adjustable Delay Stop, Manual Through Software

Calibration: Digital calibration through software

Form factor: Handheld

Memory Note: 32,767 readings

Samples,Max: 33000

Start Modes: Adjustable Delay Start, Immediate Start

Battery life: up to 2 yr

Pressure, Max: 5 bar

Pressure, Min: 0 bar

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month @ 25 °C

Data Interface: USB

Measurement Type: Pressure, Temperature

Enclosure Ratings: IP68

Supply Power Type: Battery

Sampling Rate Note: 1 reading every second to 1 every 24 hours.

Data Interface Note: OM-CP-IFC400 USB docking station or OM-CP-IFC406 multiplexer interface required; 125,000 baud

Pressure Resolution: 0.0001 bar

Real Time Recording: May be used with PC to monitor and record data in real time

Temperature Accuracy: ± 0.2 °C

Additional Features 1: Flush Top

Battery Size and Type: Li-ion

Number of Measurements: 2

Relative Humidity, Max: 1

Relative Humidity, Min: 0%

Software Compatibility: Windows® XP/VISTA/7 and 8 (32- and 64-bit)

Temperature Resolution: 0.01 °C

Operating Pressure, Max: 100 psi

Operating Pressure, Min: 0.002 psi

Temperature Accuracy Note: ± 0.1°C (20 to 140°C)

Operating Temperature, Max: 140 °C

Operating Temperature, Min: -20 °C

Pressure Calibrated Accuracy: ± 0.03

Temperature Measurement, Max: 140 °C

Temperature Measurement, Min: -20 °C

Datasheet
