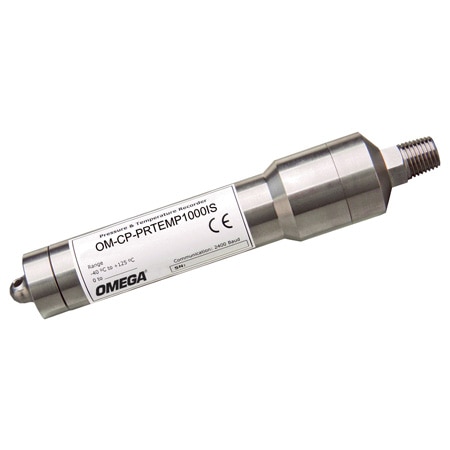

OMEGA OM-CP-PRTEMP1000IS-1-500-A Intrinsically Safe Rugged Pressure and Temperature Recorder (500 psi, Absolute, NPT Male, 1/4 in)

Length: 163 mm

Memory: 16,383 Readings

Weight: 338 g

Diameter: 33 mm

Software: Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)

Approvals: CE, FM

Baud Rate: 2400

Materials: Stainless Steel

Resolution: Pressure : 0.05 psi, Temperature: 0.1°C

Calibration: Digital calibration through software and automatically recorded within device

Start Modes: Delayed Start, Immediate Start

Battery life: up to 1 yr

Accuracy Note: Calibration Accuracy : Pressure: 2% FSR, 0.25% @ 25°C typical; Time Accuracy : 1 minute/month at 20°C, (RS-232 port not in use); Pressure Repeatability : ± 0.5% FSR; ± 0.2% typical

Pressure Type: Absolute

Pressure, Max: 500 psi

Pressure, Min: 0 psi

Sampling Rate: 0.5 Hz (2 seconds between updates)

Time Accuracy: 1 minute/month

Data Interface: USB, RS232

Humidity Range: 0 to 100% RH

Millivolt Range: N/A

Measurement Type: Pressure, Temperature

measurement-type: Pressure, Temperature

Supply Power Type: Battery

Frequency Response: Pressure Response Time: 0.1 ms

Sampling Rate Note: 1 reading every 2 seconds, to 1 every 12 hours

Real Time Recording: The device may be used with PC to monitor and record data in real-time

Calibration Accuracy: Temperature : ±0.5°C, Pressure : 2%

Battery Size and Type: 3.6V Li-ion

Number of Measurements: 2

Pressure Repeatability: ± 0.5%

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C

Measuring Temperature Range, Max: 80 °C

Measuring Temperature Range, Min: -40 °C
