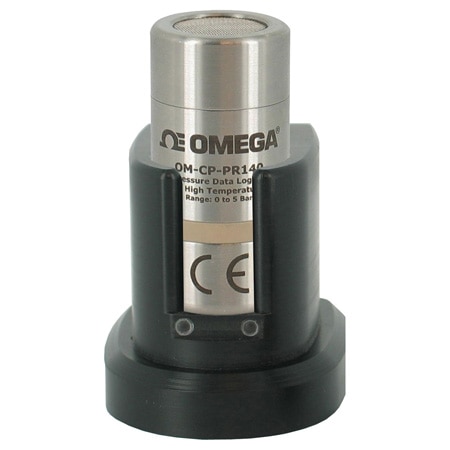

OMEGA OM-CP-PR140 Submersible Pressure Data Logger for High Temperature (Pressure, Absolute)

Length: 50.8 mm

Memory: 32,700 Readings

Weight: 85 g

Diameter: 25.4 mm

Mounting: Flush Mount

Software: Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)

Approvals: CE

Baud Rate: 125000

Materials: Stainless Steel

Resolution: Pressure : 0.0015 psi

Stop Modes: Adjustable Delay Stop

Calibration: Digital Calibration through Software with Montly Calibration interval

Memory Note: 32,700 readings; software configurable memory wrap

Start Modes: Delayed Start, Immediate Start

Battery life: up to 2 yr

Accuracy Note: Calibration Accuracy : Pressure: ±0.435 psi @ 20 to 140ºC; Time Accuracy : ±1 minute/month at 20ºC; Pressure Repeatability : ±0.5% FSR; ±0.2% typical

Pressure Type: Absolute

Pressure, Max: 72.5 psi

Pressure, Min: 0 psi

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ±1 minute/month

Data Interface: USB

Humidity Range: 0 to 100% RH

Millivolt Range: N/A

Measurement Type: Pressure

Supply Power Type: Battery

Frequency Response: Pressure Response Time: 0.1 ms

Sampling Rate Note: 1 second to 1 every 24 hours

Real Time Recording: The device may be used with PC to monitor and record data in real-time

Calibration Accuracy: Pressure: ±0.435 psi

Battery Size and Type: 3.6V Li-ion

Number of Measurements: 1

Pressure Repeatability: ±0.5%

Process Connection Size: N/A

Process Connection Type: N/A

Operating Temperature, Max: 140 °C

Operating Temperature, Min: -20 °C

Datasheet
