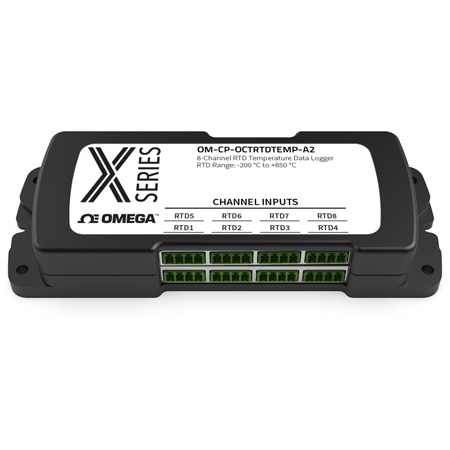

OMEGA OM-CP-OCTRTDTEMP-A2 X-Series - Multi Channel RTD Temperature Loggers (Temperature, WiFi)

Width: 184.2 mm

Height: 31 mm

Length: 65.6 mm

Memory: 349354

Weight: 368 g

Enclosure: Aluminium

Calibration: Digital calibration through software

Form factor: Benchtop

Samples,Max: 2800000

Start Modes: Adjustable Delay Start, Immediate Start

Battery life: up to 18 mo

Sampling Rate: 1 day

Time Accuracy: ± 1 minute/month

Data Interface: WiFi

LED Indicators: 1 per channel and 2 status LEDs

Measurement Type: Temperature

Number of Inputs: 8

Supply Power Type: Battery

Operating Humidity: 0 to 95% RH

Sampling Rate Note: 4 Hz up to 1 reading every 24 hours

Data Interface Note: USB-A to micro USB cable (included); 460,800 baud

Real Time Recording: May be used with PC to monitor and record data in real time

Additional Features 1: NIST Traceable Calibration

Battery Size and Type: Li-ion, 9V

Electrical Connection: Screw Terminal

Number of Measurements: 8

Software Compatibility: Windows XP SP3/7/8/10

Temperature Resolution: 0.001 °C

Temperature Sensor Type: RTD

Process Temperature Note: 18.5 Ω to 390.5 Ω -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent)

Process Temperature, Max: 850 °C

Process Temperature, Min: -200 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Temperature Resolution Note: 0.0001 Ω 0.001 °C (0.0018 °F) (Probe Dependent)
