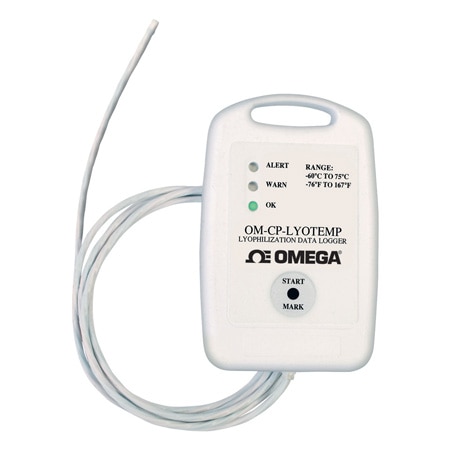

OMEGA OM-CP-LYOTEMP Lyophilization Temperature Data Logger (Temperature, USB, ± 0.5 °C)

Width: 53.3 mm

Length: 82.5 mm

Weight: 40 g

Enclosure: ABS

Alarm Note: Software programmable high and low alarm limits, high and low warn limits; each set point may be individually enabled or disabled

Alarm Delay: Programmable time delay

Calibration: Digital calibration through software

Form factor: Handheld

Memory Note: Memory Reading Per Channel 32767

Start Modes: Adjustable Delay Start, Immediate Start

Battery life: up to 1 yr

Display Type: LED

Probe Length: 121.9 cm

Sampling Rate: 5 seconds between updates

Time Accuracy: ± 5 minute/month

Data Interface: USB

LED Indicators: Green : Blinks to indicate safe conditions during logging; Yellow : Blinks to indicate warn limits have been exceeded; Red : Blinks to indicate alarm criteria (limits/delay) have been exceeded

Measurement Type: Temperature

Enclosure Ratings: IP50

Supply Power Type: Battery

Sampling Rate Note: 1 reading every 5 seconds up to 1 reading every 30 minutes

Data Interface Note: USB docking station to PC; 38,400 baud

Temperature Accuracy: ± 0.5 °C

Additional Features 1: Ultra Low Operating Temperature

Battery Size and Type: 3.6V Li-ion

Number of Measurements: 1

Software Compatibility: XP SP3/Vista/7 and 8 (32-bit and 64-bit)

Temperature Resolution: ± 0.1 °C

Relative Humidity Accuracy: ± 3% RH

Temperature Measurement, Max: 75 °C

Temperature Measurement, Min: -60 °C
