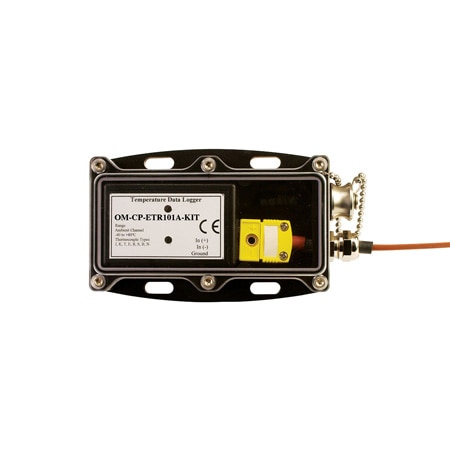

OMEGA OM-CP-ETR101A-KIT Waterproof Thermocouple Data Logging System with Remote Probe (Temperature, USB, ± 0.1 °C)

Width: 56 mm

Height: 16 mm

Length: 36 mm

Memory: 500000

Weight: 425 g

Stop Modes: Adjustable Delay Stop, Manual Through Software

Wire Gauge: 24 AWG

Alarm Delay: Programmable time delay

Form factor: Benchtop

Memory Note: 500,000 readings

Start Modes: Adjustable Delay Start, Immediate Start, Push-button

Battery life: up to 10 yr

Cable Length: 762 mm

Memory Modes: Yes

Probe Length: 153 mm

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month

Data Interface: USB

LED Indicators: Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode ;Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition

Probe Diameter: 3.2 mm

Waterbox Depth: 27 mm

Waterbox Width: 73 mm

Waterbox Height: 87 mm

Measurement Type: Temperature

Supply Power Type: Battery

Sampling Rate Note: 1 reading every second to 1 every 24 hours.

Data Interface Note: USB (interface cable required); 115,200 baud

Real Time Recording: The device may be used with PC to monitor and record data in real-time

Temperature Accuracy: ± 0.1 °C

Additional Features 1: Waterproof NEMA 4 (IP65) Enclosure

Battery Size and Type: 3.6V Li-ion

Electrical Connection: Miniature Female Thermocouple Connector Non-Window

Number of Measurements: 2

Software Compatibility: Windows® XP/VISTA/7 and 8 (32- and 64-bit)

Remote Channel Accuracy: ± 2.0°C

Temperature Sensor Type: Thermocouple

Process Temperature, Max: 80 °C

Process Temperature, Min: -40 °C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -20 °C

Remote Channel Temperature: -270 to 1070 °C

Temperature Sensor Type Note: Thermocouple

Thermocouple Resistance, Max: 100 Ω

Internal Channel Calibrated Accuracy: ± 0.25°C
