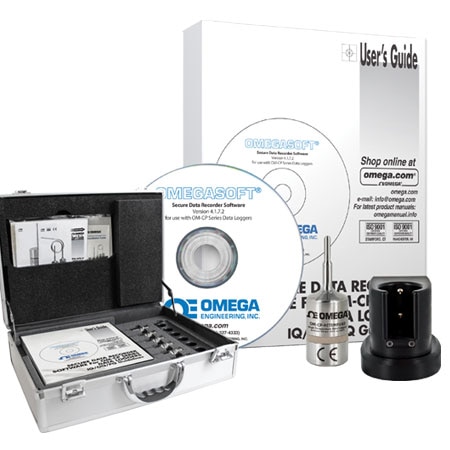

OMEGA OM-CP-AVS140-1 Autoclave Validation Systems - FDA 21 CFR Part 11 (Temperature, USB, ± 0.1 °C)

Height: 40 mm

Memory: 32700

Weight: 120 g

Diameter: 25 mm

Materials: 316 Stainless Steel

Calibration: Digital calibration through software

Form factor: Benchtop

Memory Note: 32,700 readings; software configurable memory wrap

Samples,Max: 33000

Battery life: up to 1 yr

Probe Length: 27 mm

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month at 20 to 30ºC;(68 to 86ºF) (stand alone mode)

Data Interface: USB

Probe Diameter: 3.2 mm

Measurement Type: Temperature

Supply Power Type: Battery

Operating Humidity: 0 to 100% RH

Sampling Rate Note: One second up to once every 24 hours

Data Interface Note: OM-CP-IFC400 USB docking station or OM-CP-IFC406 multiplexer interface required, 125,000 baud

Real Time Recording: May be used with PC to monitor ;and record data in real time

Pressure Sensor Type: MEMS Piezoresistive

Temperature Accuracy: ± 0.1 °C

Additional Features 1: Complete systems used to perform autoclave validations for Temperature

Battery Size and Type: 3.6V Li-ion

Number of Measurements: 1

Software Compatibility: XP SP3/Vista/7 and 8 (32-bit and 64-bit)

Temperature Resolution: 0.01 °C

Temperature Sensor Type: RTD

Process Temperature, Max: 260 °C

Process Temperature, Min: -200 °C

Operating Temperature, Max: 140 °C

Operating Temperature, Min: -40 °C

Temperature Sensor Type Note: 100Ω Platinum RTD

Datasheet
