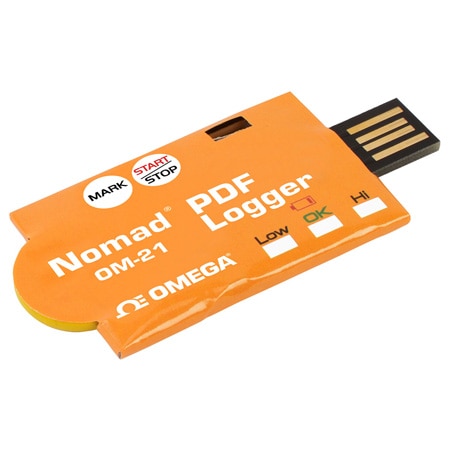

OMEGA OM-21-10PK Single use Cold Chain PDF Temperature Logger for Audit Reports (Temperature, USB, ± 0.5 °C)

Width: 33 mm

Height: 2.5 mm

Length: 73 mm

Memory: 8192

Weight: 10 g

Pack Size: 10

Alarm Note: Single: A LED alarm is triggered immediately when the measured value exceeds the alarm threshold, Alarm Temperature: -20 to 25°C Cumulative: A LED alarm is not triggered when the measured value exceeds the alarm threshold, but only once the overall average value during alarm delay duration exceeds the alarm threshold Disable: No LED alarm function during the logging process

Alarm Delay: 5, 30, 45, 60, 90, or 120 minutes

Form factor: Handheld

Samples,Max: 10000

Start Delay: 0, 5, 30, 45, 60, 90, 120 minutes

Sampling Rate: 30 seconds between updates

Data Interface: USB

LED Indicators: REC, low battery, high alarm, low alarm

Measurement Type: Temperature

Enclosure Ratings: IP65

Supply Power Type: Battery

Sampling Rate Note: 30 seconds, 5, 10, 30, 60, 90, 120 minutes

Temperature Accuracy: ± 0.5 °C

Additional Features 1: Single Use, Programmable Sampling Rate, FDA

Battery Size and Type: CR2032, 3V Li-ion

Storage Humidity, Max: 0.9

Storage Humidity, Min: 0

Number of Measurements: 1

Software Compatibility: Windows XP/Vista/7 and 8

Temperature Resolution: ± 0.1 °C

Temperature Sensor Type: Thermistor

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -30 °C

Relative Humidity Accuracy: ± 3% RH

Temperature Measurement, Max: 70 °C

Temperature Measurement, Min: -30 °C
