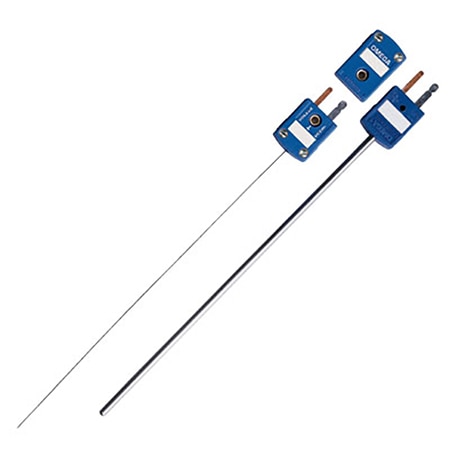

OMEGA NMQIN-062E-12 Thermocouple Probes with Molded Miniature Connectors (Thermocouple, N, 920 °C)

Cable Clamp: PCLM-SMP

Safety Clip: SMCL

Probe Length: 12 in

probe-length: 12 in

Junction Type: Exposed

Probe Diameter: 0.062 in

Sheath Material: Inconel® 600

Mating Connector: Miniature Female Thermocouple Connector

Thermocouple Type: N

Alloy Material (+): Nicrosil

Alloy Material (-): Nisil

Color Code Standard: ANSI

Electrical Connection: Miniature Male Thermocouple Connector

Process Connection Size: N/A

Temperature Sensor Type: Thermocouple

Process Temperature, Max: 920 °C

Process Temperature, Min: 0 °C

Connector Temperature, Max: 220 °C

Connector Temperature, Min: 0 °C
