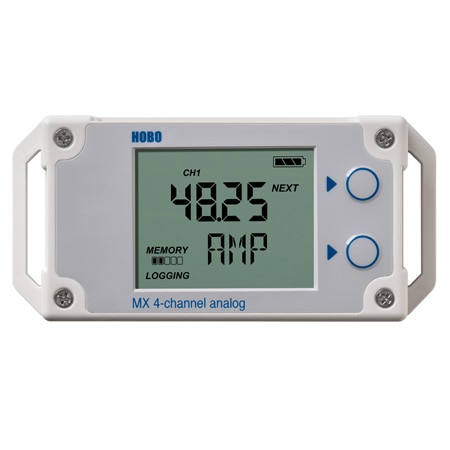

OMEGA MX1105 HOBO MX BLE 4-Channel Analog Datalogger (Magnetic Surface or Insert the tie wraps)

Width: 4.44 in

Height: 1.15 in

Length: 2.13 in

Memory: 4 MB

Weight: 4.34 oz

Display: LCD

Approvals: CE

Input Type: External

Stop Modes: Button Push, When Memory is Full, At set date and time, At set Duration

Form factor: Magnetic Surface or Insert the tie wraps

Memory Note: Approximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is from the logger

Radio Power: 1 mW

Samples,Max: ~1.9M Samples, Interval Selectable 1 sec to 18hrs

Start Modes: At set date and time, Button Push, Immediate Start, Next Interval

Battery life: 1 yr, typical with reading interval of 1 min

Display Note: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Memory Modes: stop when full, Wrap when full

Restart Mode: Push button

Accuracy Note: Current Accuracy: ± 0.001 mA ± 0.2% of reading, Voltage Accuracy: 0 to 24 V: ± 1.0 mV ± 0.3% of reading, 0 to 2.5 V: ± 0.1 mV ± 0.1% of reading, 0 to 5 V: ± 0.2 mV ± 0.3% of reading, 0 to 10 V: ± 0.4 mV ± 0.3% of reading

Configuration: HOBOmobile® app Android, iOS, iPadOS

Logging Modes: burst, Fixed interval

Time Accuracy: ± 1 minute/month

Data Interface: Bluetooth

Resolution Note: Current Resolution: 0.3 µA, Voltage Resolution: 0 to 24 V, 384 µV, 0 to 2.5 V: 40 µV, 0 to 5 V: 80 µV, 0 to 10 V: 160 µV

Current Accuracy: ± 0.001 mA

Form Factor Note: Use the four magnets on the back of the logger to mount it to a magnetic surface or insert the tie wraps through the mounting loops to attach it to other surfaces

Measurement Type: Current, Voltage

Voltage Accuracy: ± 1.0 mV

Enclosure Ratings: IP54

Supply Power Type: Battery

Current Resolution: 0.3 µA

Transmission Range: 30.5 m

Voltage Resolution: 384 µV

Battery Size and Type: Alkaline AAA

Resistance Resolution: Voltage: 384 µV, Current: 0.3 µA

Logger with Cable Type: Current: SD-MA-420 or CABLE-4-20mA; Voltage: 0 to 24 V: SD-VOLT-24 or CABLE-ADAP24; 0 to 2.5 V: SD-VOLT-2.5 or CABLE-2.5-STEREO; 0 to 5 V: SD-VOLT-05 or CABLE-ADAP5; 0 to 10 V: SD-VOLT-10 or CABLE-ADAP10

Number of Measurements: 4

Current Measurement Range: 0 to 20.1 mA

Voltage Measurement Range: 0 to 2.5 V, 0 to 5.0 V. 0 to 10 V, 0 to 24 V

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C
