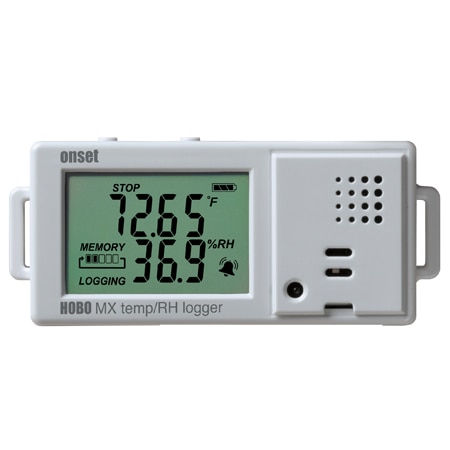

OMEGA MX1101 HOBO MX Bluetooth Temperature and Humidity Logger with Display (70 °C, Magnetic Surface or Insert the tie wraps)

Width: 1.44 in

Height: 0.9 in

Length: 3.34 in

Weight: 1.98 oz

Approvals: CE

Input Type: Internal

Stop Modes: Button Push, When Memory is Full, At set date and time, At set Duration

Form factor: Magnetic Surface or Insert the tie wraps

Memory Note: Approximately 60 seconds; may take longer the further the device is from the logger

Radio Power: 1 mW

Samples,Max: 85k Samples, Interval Selectable 1 sec to 18hrs

Start Modes: At set date and time, Button Push, Immediate Start, Next Interval

Battery life: 1 yr, typical with reading interval of 1 min

Display Note: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Display Type: LCD

Restart Mode: Push button

Accuracy Note: Temperature Sensor Accuracy: ± 0.21°C from 0° to 50°C, Relative Humidity Accuracy: ± 2% from 20% to 80% at 25°C

Configuration: HOBOmobile® app Android, iOS

Logging Modes: burst, Fixed interval

RH Resolution: 0.0001

Response Time: Temperature: 7 hrs 30 Min, RH: 20 sec

Time Accuracy: ± 1 minute/month at 25°C

Data Interface: Bluetooth

RH Sensor Drift: <1% Per Year

Form Factor Note: "Use the four magnets on the back of the logger case to mount it to a magnetic surface. • Attach Command strips to the back of the logger to mount it a wall or other flat surface. Double up the two Command strips so that they protrude past the magnets. • Use the double-sided tape to affix the logger to a surface. • Insert the hook-and-loop strap through the mounting loops on both sides of the logger to mount it to a curved surface, such as a pipe or tubing."

Measurement Type: Relative Humidity, Temperature

Enclosure Ratings: IP50

Relative Humidity: 1% to 95%

Supply Power Type: Battery

Response Time Note: Temperature: 7:30 Minutes in air moving 1 m/s, RH: 20 seconds to 90% in airflow of 1 m/s

Transmission Range: 30.5 m

Data Interface Note: Mobile Device Compatibility: iOS 8.3, 8.4 & 9.0, or Android 4.4, 5.0, 5.1 and Bluetooth 4.0 or later Bluetooth Compatibility : Bluetooth 4.0 or later (Bluetooth Low Energy, Bluetooth Smart)

Temperature Accuracy: ± 0.21°C

Battery Size and Type: Alkaline AAA

Number of Measurements: 2

Temperature Resolution: 0.024 °C

Temperature Sensor Drift: < 0.1°C Per Year

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C

Relative Humidity Accuracy: ± 2% RH

Temperature Measurement, Max: 70 °C

Temperature Measurement, Min: -20 °C
