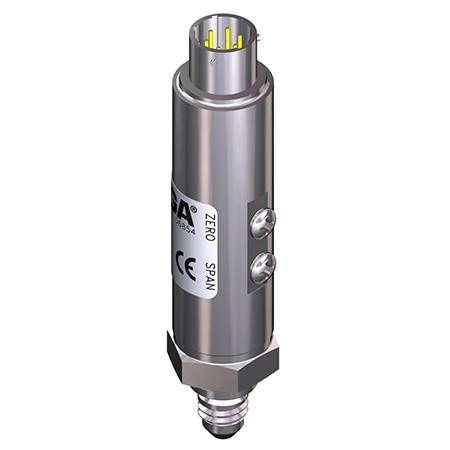

OMEGA MMV015C1M2C1T3A3 Highly Configurable, High Accuracy, Custom Pressure Transducers (Vacuum, -30.5 inHg, NPT Male, 1/4 in)

Shock: 50 g, 11 ms half sine (under test)

Weight: 285 g

Accuracy: ± 0.05 %

Bandwidth: DC to 1 kHz

Stability: ± 0.1%

Vibration: ± 20 g

Output Signal: Current

Pressure Type: Vacuum

Pressure, Max: -30.5 inHg

Pressure, Min: 0 psi

Response Time: <1 ms

ADC Resolution: None

Burst Pressure: 3000 psi

Proof Pressure: 4x Full Scale up to 3000 psi

Stability Note: Long Term Stability (1-Year): ± 0.1% FS typical.

Supply Voltage: 9 to 30 Vdc

Pressure Cycles: 1 million, minimum

Mating Connector: MIL-26482-I 10-6S

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP65

Materials, Wetted: 316L Stainless Steel

Supply Power Note: 9 to 30 Vdc [9 to 20 Vdc above 105°C (229°F)] max loop res Ω = (Vs-9) x 50

Zero/Balance Error: ± 0.5% FS typical ± 1 max

Media Compatibility: Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids

Electrical Connection: MIL-26482-I 10-6P

Insulation Resistance: 100 MΩ @ 50 Vdc

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Zero/Balance Error Note: ± 0.5% FS typical ± 1 max (for ranges ≤2.5 psi ± 1% typ. ± 2% max)

Operating Temperature, Max: 121 °C

Operating Temperature, Min: -45 °C

Compensated Temperature, Max: 60 °C

Compensated Temperature, Min: -7 °C

Thermal Effect on Zero error, Max: ± 0.5% FS
