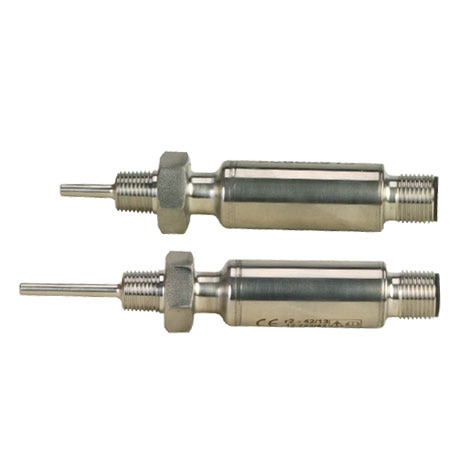

OMEGA M12TXSS-PT100-24MM-G1/8 Stainless Steel RTD probes with 4 to 20 mA analog output & Mounting Threads (BSPP Male, 1/8 in, 120 °C, Class A)

EMC: In accordance to EN 61326

Upscale: 21 mA

Accuracy: Class A

RTD Type: 100 Ω Pt Sensor

Downscale: 3.6 mA

Span Note: 50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)]

Span, Min: 50°C

Probe Length: 24 mm

Accuracy Note: Class A per IEC60751

Body Material: Stainless steel AISI 316L

Response Time: < 50 ms

Probe Diameter: 3 mm

Supply Voltage: 8.5 to 32 Vdc

Factory Setting: 0 to 100°C/ sensor break >21 mA (upscale)

Permissible Load: 700

Tmax. Electronic: 80°C

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP67

Thermocouple Type: N/A

Response Time Note: Diameter 3 mm (0.12") <3.5 seconds, diameter 6 mm (0.24") <13 seconds (test in water to IEC751- time for reaching 63.2% of instantaneous temperature change)

Supply Power Effects: Negligible

Permissible Load Note: 700 @ 24 Vdc [RLo= (Vsupply-8.5)/0.020]

Enclosure Ratings Note: IP65 and IP67 in accordance to IEC60529

Relative Humidity, Max: 1

Relative Humidity, Min: 0%

Process Connection Size: 1/8 in

Process Connection Type: BSPP Male

Temperature Sensor Type: RTD

Process Temperature, Max: 120 °C

Process Temperature, Min: -50 °C

Range Configurations Note: It is possible set the input temperature range (span) by the M12TX-CONFIG-SETconfiguration kit (PC with OS Windows® required)

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C

Temperature Influence Note: Maximum of ± 0.3°C/25°C (77°F) or ± 0.3% of span/25°C (77°F)

Temperature Influence, Max: ± 0.3%

Sensor Break Monitoring Note: Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action

Zero Setting Adjustable Range: Any value between -50 to 50°C (-58 to 122°F)

Sensor Error Compensation Note: Over 2 points (maximum 1% of span)
