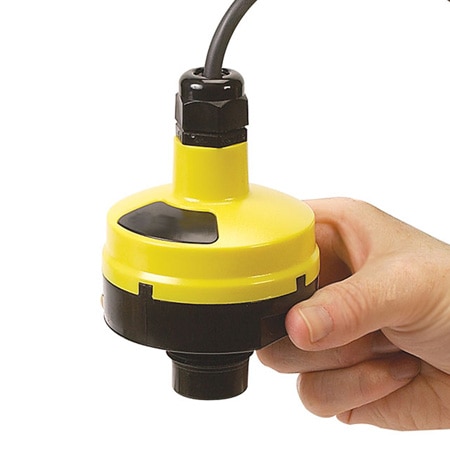

OMEGA LVCN210 Ultrasonic Level Transmitter and Controller (1 in, NPT Male, USB, 9.8 ft)

Height: 4.9 in

Memory: Non - Volatile

Accuracy: ± 0.2 %

Diameter: 3.06 in

Materials: FKM, Fluoroelastomer, Polycarbonate, Polyvinylidene, Fluoride

Beam Width: 2 in

Cable Type: Insulated Shielded

Compliance: CE, RoHS 2

Insulation: Polyurethane

Resolution: 0.039 in

Switch Type: SPST

Cable Length: 48 in

Configuration: Free PC Windows® USB 2.0.The level sensor is configurable via our free PC software and USB adaptor. The sensors are offered with and without USB connectors. Connectors can be used to configure many compatible level products. Download your free copy at

Output Signal: Current

Signal invert: 4 to 20 mA or 20 to 4 mA

Switch Rating: 60 VA,1A max

Data Interface: USB

Supply Voltage: 24 Vdc

Loop Resistance: 400 Ω max

Mean Hysteresis: Selectable

Number of Wires: 2

Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last

Contact Fail-Safe: Power Loss: Hold Last

Electrical Output: 4 to 20 mA

Enclosure Ratings: NEMA Type 13

Connector Included: USB Connector Included

Media Compatibility: Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids

Measuring Range, Max: 9.8 ft

Measuring Range, Min: 0 ft

Operating Pressure, Max: 30 psi

Process Connection Size: 1 in

Process Connection Type: NPT Male

Process Temperature, Max: 60 °C

Process Temperature, Min: -7 °C

Temperature Compensation: Automatic

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -35 °C
