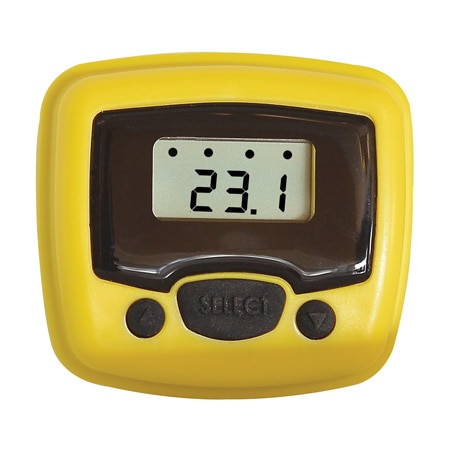

OMEGA LVCN-40 LEVEL INDICATOR AND INTERFACE, with NEMA 4X Enclosure (6 Digit LCD)

Keypad: Three button

Input Note: LVCN210, LVCN318 or LVCN414 series

Wire Gauge: 22 AWG

Cable Length: 1.8 m

Display Size: 9.5 mm (0.37 in)

Display Type: 6 Digit LCD

Display Color: Black

Cable Material: Polyurethane

Data Interface: RS485

Span Adjustment: 0.001 to 9999 counts, programmable

Display Type Note: LCD, 6-digit with 4 relay indicators Units: Engineering Output: -99999 to 999999 Decimal Point: Fixed

Enclosure Ratings: IP65, NEMA Type 4

Enclosure Material: Polycarbonate

Additional Features 1: Classification- General Purpose

Display and Indications: Relay on/off

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C
