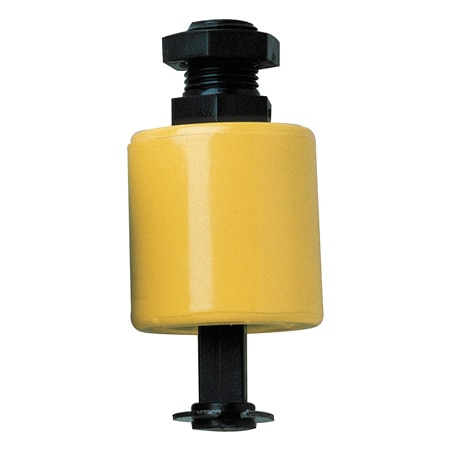

OMEGA LV-511 Vertical Mount Compact Single Station Level Switch (25 psi, PVDF, 1/8 in, NPT Male)

Accuracy: ± 0.19 inH2O

Approvals: General purpose, CE, RoHS

Insulation: TFE

Wire Gauge: 22 AWG

Switch Type: SPST

Cable Length: 2 ft

Probe Length: 2.3 in

Repeatability: ± 0.07 inH2O

Switch Rating: 50 VA @ 120 Vac

Number of Wires: 2

Specific Gravity: 0.8

Switch Operation: Dry switch closure, Selectable Normally Open or Normally Closed

Enclosure Ratings: IP68, NEMA Type 6

Materials, Wetted: PVDF

Media Compatibility: Oil, Solvents, Water

Operating Pressure, Max: 25 psi

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Operating Temperature, Max: 90 °C

Operating Temperature, Min: -40 °C

Material Construction Option: PVDF
