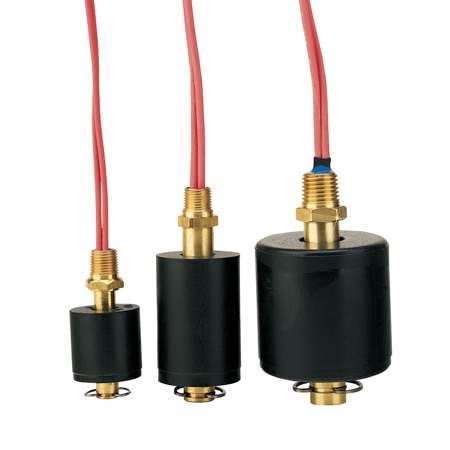

OMEGA LV-21 Low Cost, Single Station, Vertical Mounted Liquid Level Switch (150 psi, 1/8 in, NPT Male)

Wire Gauge: 18 AWG

Switch Note: Approximately 1/2 the distance from the end of stem to mounting or halfway point of float travel

Switch Type: SPST

Cable Length: 24 in

Switch Rating: 100 VA

Specific Gravity: 0.58

Switch Operation: Selectable Normally Open or Normally Closed

Materials, Wetted: 316 Stainless Steel, Brass, Buna-N (NBR), Epoxy

Media Compatibility: Oil, Solvents, Water

Operating Pressure, Max: 150 psi

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Operating Temperature Note: Water: -40 to 82°C, Oil: -40 to 149°C

Operating Temperature, Max: 149 °C

Operating Temperature, Min: -40 °C

Datasheet
