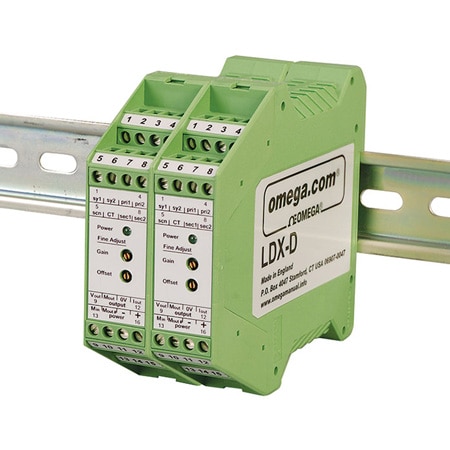

OMEGA LDX-D DIN Rail Signal Conditioner for AC LVDT Transducers (AC Voltage, 55 to 5000 mV)

Width: 22.5 mm

Height: 99 mm

Length: 111 mm

Offset: Output Offset: Up to 100 %

Weight: 120 g

Mounting: DIN Rail 35 mm Standard

Approvals: CE

Bandwidth: 500 Hz or 1 kHz

Materials: Green Polyamide

Input Type: AC Voltage

Adjustments: Front-Panel Fine-Adjustment potentiometers facilitate setup

Output Value: Process

Warm Up Time: 15 min

Output Detail: Voltage Output: Up to ±10 Vdc Current Output: Up to 20 mA into 150 Ω load

Output Ripple: <1 mVrms

Output Signal: Current, Voltage

Supply Voltage: 10 to 30 Vdc

Load Resistance: Load Resistance: 100 kΩ;Output Load: 150 Ω

Number of Inputs: 1

Electrical Output: 20 mA

Supply Power Note: Supply Current: Voltage Range: 140 mA @ 10 Vdc, 60 mA @ 30 Vdc Current Range: 160 mA @ 10 Vdc, 70 mA @ 30 Vdc

Supply Power Type: DC

Excitation Voltage: 3 Vrms

Supply Power Effects: Transducer Primary Frequency (kHz): 5-, 10- or 13-link selectable

Voltage Output Range: ± 10 Vdc

Electrical Connection: Screw Terminal

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -20 °C

Voltage Measurement Range: 55 to 5000 mV

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C
