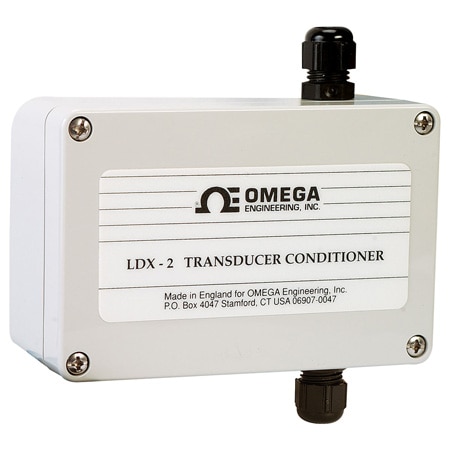

OMEGA LDX-2 LVDT Signal Conditioner, Loop Powered for AC LVDT (Voltage, 4 to 20 mA)

Width: 80 mm

Height: 120.65 mm

Length: 54.86 mm

Weight: 220 g

Accuracy: ± 0.02 %

Mounting: Through holes in base by 2 screws and nuts, can be mounted to DIN 46277-1 rail

Approvals: CE

Gain Range: 3.5 to 1 switched, 5 to 1 adjustable

Input Type: Voltage

Protection: Oscillator Protection: Open and short circuit protected, Output Protection: Open and short circuit protected, Supply Protection: Reverse polarity protected

Input Noise: 0 to 1.5 Hz: 1.4 µVRMS (RTI)

Input Range: 30 to 530 mV/V

Sensitivity: Transducer : 30 to 530 mV/V

Non-Linearity: Better than 0.02%

Output Detail: Output Current: 4 to 20 mA 2-wire or 0 to 20 mA 3-wire. Output Ripple:<50 µA p-p @ 10 kHz Output Filter: Cutoff frequency -3 dB @ 25 Hz second-order linearity: <0.02%

Output Signal: Current

Supply Voltage: 13 to 48 Vdc, up to 30 mA

Number of Wires: 2, 3

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP65, NEMA Type 12

Sensor Excitation: 0.9 Vrms @ 5 kHz nominal, 13 kHz switchable

Supply Power Type: DC

Temperature Coefficient: Zero: Better than 0.01% FS/°C;Gain: Better than 0.01% FS/°C

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: 0 °C

Input Electrical Connection: Screw terminals; access through 2 cable ports for wires 1 to 5 mm (0.04 to 0.2") diameter
