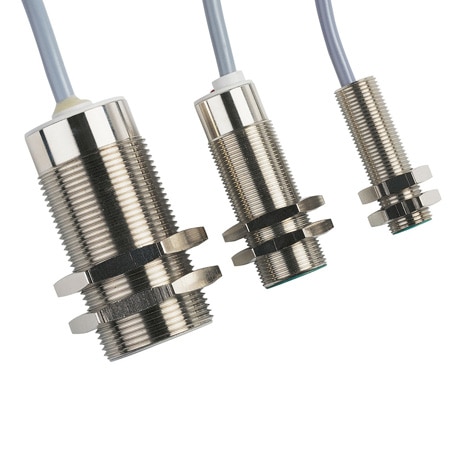

OMEGA LD701-2/5 LVIT Linear Position Sensors for Low Ranges (Metric, 12 mm)

Cable Type: Pigtail

Cable Length: 1.8 m

Locknut Width: 24 mm

Repeatability: ±10 µm

Housing Length: 65 mm

Supply Current: 20 mA

Supply Voltage: 14 to 30 Vdc

Thermal Effects: 1μm/°C/mm

Housing Diameter: 18 mm

Housing Material: Nickel-plated Brass

Measurement, Max: 5 mm

Measurement, Min: 2 mm

Electrical Output: 1 to 9 Vdc

Enclosure Ratings: IP67

Supply Power Note: 14 to 30 Vdc @20mA unregulated, reverse polarity and short circuit protected

Correction Factors: Mild steel 1.0;Stainless steel 0.75;Brass 0.50;Aluminum 0.40;Copper 0.35

Frequency Response: Switching Frequency: dc to 1000 Hz (-3 dB)

Additional Features 1: Non-Contact

Electrical Connection: Pigtail Leads

Process Connection Size: 12 mm

Process Connection Type: Metric

Compensated Temperature, Max: 60 °C

Compensated Temperature, Min: 0 °C
