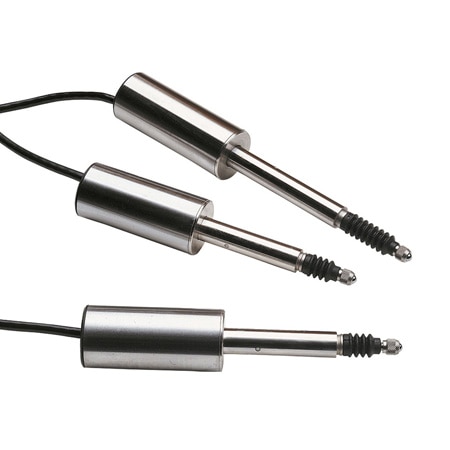

OMEGA LD500-1 LVDT Linear Position Sensors with Precision Tip

Bandwidth: 100 Hz (-3 dB)

Cable Type: Insulated Shielded

Sensitivity: 78 mV/V/mm

Cable Length: 2 m

Input Current: 10 mA

Output Ripple: <1%

Repeatability: <0.15 mm

Response Time: 1.5 ms

Housing Length: 1.6 in

Mounting Torque: 13 g/mm

Housing Diameter: 0.74 in

Measurement, Max: 1 mm

Measurement, Min: -1 mm

Electrical Output: DC

Input Control Signal: 10 to 24 Vdc

Additional Features 1: Guaging Transducer

Temperature Coefficient: Zero : <0.01%/°C;Sensitivity : <0.01%/°C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -20 °C
