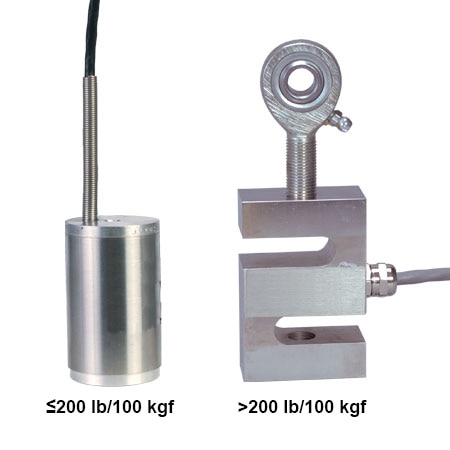

OMEGA LCM105-500 Metric, Lightweight, Aluminum S-Beam Load Cells (500 kgf)

Width: 25 mm

Height: 51 mm

Length: 76 mm

Weight: 0.5 kg

height: 51 mm

End Rod: MREC-M12M

Linearity: ± 0.03%

Materials: Aluminum

Force Type: Compression, Tension

Hysteresis: ± 0.02%

Wire Gauge: 20 AWG

Load Button: MLBC-M12

Cable Length: 30 ft

Overload, Max: 300% FS

Repeatability: ± 0.01%

Safe Overload: 150% FS

Load Cell Type: S-beam

Supply Voltage: 10 Vdc

Bridge Resistance: 350 ± 5 Ω

Electrical Output: 3 mV/V

Enclosure Ratings: IP65

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Load Cell Capacity: 500 kgf

Zero/Balance Error: ± 1%

Thermal Span Effect: 0.002% rdg/°C

Thermal Zero Effect: 0.002% FSO/°C

Electrical Connection: Cable

Full Scale Deflection: 0.02 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 71 °C

Process Temperature, Min: 17 °C

Operating Temperature, Max: 93 °C

Operating Temperature, Min: -40 °C
