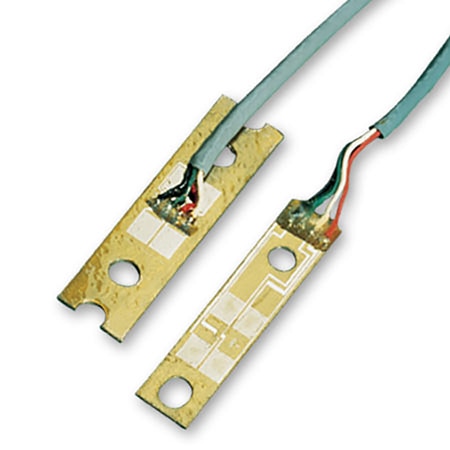

OMEGA LCL-816G Full Bridge, Thin Beam Load Cell for Low Capacities (816 gf)

Length: 1.2 in

Linearity: ± 0.50%

Materials: Copper, Urethane

Force Type: Compression

Hysteresis: ± 0.50%

Wire Gauge: 30 AWG

Cable Length: 9 in

Repeatability: ± 0.50%

Safe Overload: 150% FS

Load Cell Type: Bending Beam

Supply Voltage: 5 Vdc

Input Resistance: 1200 ± 300 Ω

Electrical Output: 2 mV/V

Output Resistance: 1200 ± 300 Ω

Supply Power Note: 5 Vdc, 12V max

Load Cell Capacity: 816 gf

Zero/Balance Error: ± 0.75 mv/V

Thermal Span Effect: 0.02%/°F

Thermal Zero Effect: 0.02% FS/°F

Electrical Connection: Cable

Full Scale Deflection: 0.05 in

Insulation Resistance: 1000 Ω @ 50 Vdc

Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Signal; White: (-) Signal

Process Temperature, Max: 49 °C

Process Temperature, Min: -7 °C

Operating Temperature, Max: 93 °C

Operating Temperature, Min: -54 °C

Datasheet
