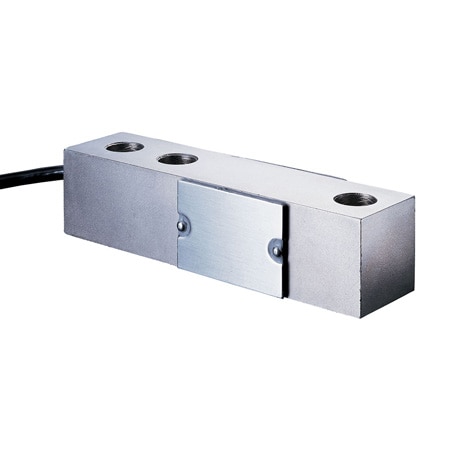

OMEGA LCJA-1K Heavy Duty, Shear Beam with Corrosion Resistance (1000 lbF)

Width: 1.25 in

Height: 1.25 in

Length: 5.12 in

Weight: 4 lb

End Rod: REC-012M

Accuracy: ± 0.037%

Linearity: ± 0.03%

Materials: Stainless Steel

Force Type: Compression

Hysteresis: ± 0.02%

Wire Gauge: 22 AWG

Load Button: LBJ-012

Cable Length: 20 ft

Overload, Max: 200% FS

Repeatability: ± 0.01%

Load Cell Type: Bending Beam

Supply Voltage: 10 to 15 Vdc

Mounting Plates: MFP-1

Bridge Resistance: 350 Ω

Electrical Output: 3 mV/V

Calibration Option: NIST

Interchangeability: 0.0025

Load Cell Capacity: 1000 lbF

Zero/Balance Error: ± 1%

Thermal Span Effect: 0.0008% rdg/°F

Thermal Zero Effect: 0.0015% FS/°F

Electrical Connection: Cable

Full Scale Deflection: 0.013 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 66 °C

Process Temperature, Min: -18 °C

Operating Temperature, Max: 66 °C

Operating Temperature, Min: -18 °C
