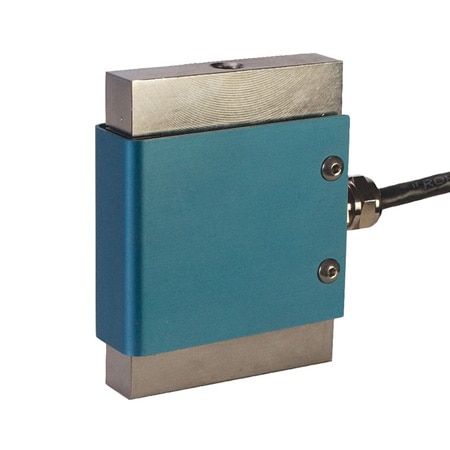

OMEGA LCCE-100 Heavy Duty, 500% Overload Protected S-Beam Load Cells (100 lbF)

Width: 0.65 in

Height: 2.5 in

Length: 1.9 in

Weight: 0.4 lb

End Rod: REC-014M

Linearity: 0.0003

Materials: 17-4 PH Stainless Steel, Aluminum

Force Type: Compression, Tension

Hysteresis: ± 0.02%

Wire Gauge: 24 AWG

Load Button: LBC-014

Cable Length: 20 ft

Overload, Max: 500% FS

Repeatability: ± 0.01%

Safe Overload: 500% FS

Load Cell Type: S-beam

Supply Voltage: 10 Vdc

Creep in 20 min: ± 0.03%

Bridge Resistance: 350 Ω

Electrical Output: 3 mV/V

Enclosure Ratings: IP67

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 100 lbF

Zero/Balance Error: ± 1%

5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in tension)

Thermal Span Effect: ± 0.0014% rdg/°C

Thermal Zero Effect: ± 0.0027% FS/°C

Through Hole Thread: 1/4"-28 UNF

Electrical Connection: Cable

Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

Process Temperature, Max: 65 °C

Process Temperature, Min: -18 °C

Operating Temperature, Max: 65 °C

Operating Temperature, Min: -18 °C
