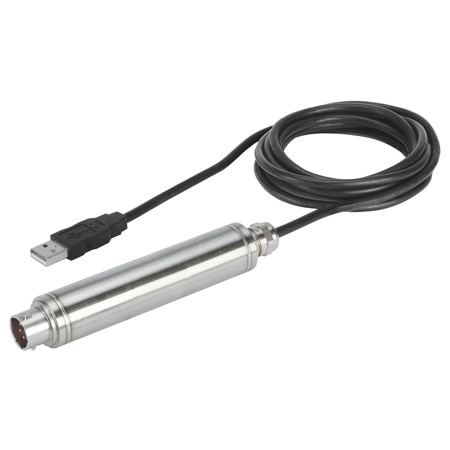

OMEGA IN-USBH USB In-Line Field Calibratable Signal Conditioner (Voltage)

Length: 101 mm

Weight: 200 g

Diameter: 22 mm

Mounting: Mounting Bracket

Approvals: CE

Bandwidth: Up to 1000 updates/second typical (± 3%)

Isolation: 2 MΩ @ 50 Vdc case to output terminations

Input Type: Voltage

Resolution: Up to 5.5

Input Range: 1 to 400 mV/V

Cable Length: 2 m

Output Signal: USB serial

ADC Resolution: 24 bit

Linearity Error: 0.001%/°C

Mating Connector: PT06F10-6S

Bridge Resistance: 350 to 15000 Ω

Sensor Excitation: 4.1 Vdc

Zero/Balance Error: 0.001%/°C

Electrical Connection: MIL-26482-I 10-6P, USB A

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C

Input Electrical Connection: MIL-26482-I 10-6P
