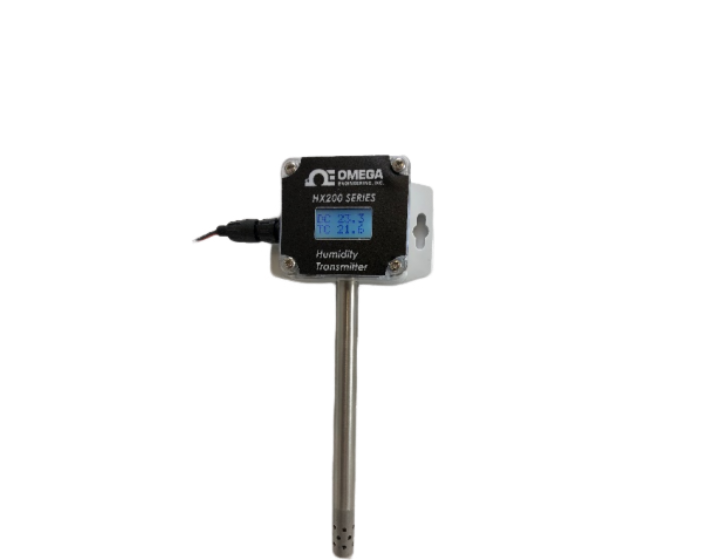

OMEGA HX200HD-W Wall Mount Dew Point/Temperature Transmitter (200°C (392°F), -60 ~ 40°C, 4-20mA, wall-mounted)

One Analog Output: 4-20mA

Loop Power corresponds: -60 to 40°C dew point

Maximum Operating Temperature: 200°C (392°F) (at 0% RH)

Output signal resolution: 0.03°C

Power Supply: 12 to 28Vdc, 25 mA max.

Display resolutions: 0.1°C

Dew Point: Accuracy: +/- 1.0°C from 40°C to -20°C, +/-3.0C <-20°C

Temp. Accuracy: +/- 0.5°C from 0 to 100°C, >100C +/-1°C

Mounting: Cable Length: 1 meter (except wall units)

SS Material: Probe, filter guard and fitting Fitting: ½” NPT stainless steel (included)

Pressure rating: 750psi

Dimensions of Probe: Length: 6.5” (185mm), O.D.: 0.5” (13mm)

Comes complete with probe, transmittter, user’s manual and NIST calibration certificate [calibration done at -60°C (-76°F)]
