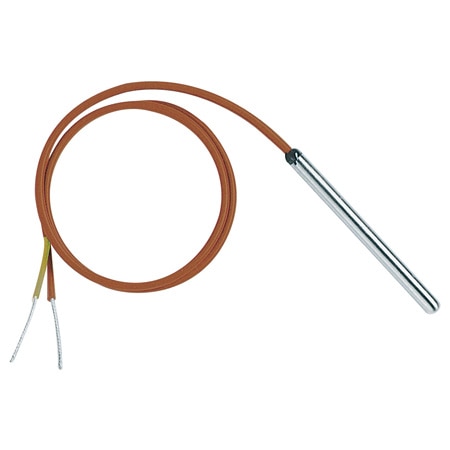

OMEGA HTTC36-N-14G-6 Hollow Tube Style Thermocouple Probes (Thermocouple, N, 900 °C, Immersion Probe)

Wire Type: Stranded

Insulation: PFA

Probe Type: Hollow Tube Style Thermocouple Probes

Wire Gauge: 20 AWG

Cable Length: 40 in

Probe Length: 6 in

Junction Type: Grounded

Probe Diameter: 0.25 in

Insulation Note: 1 m (40") PFA-Insulated Lead Wire Epoxy Potted into a 304 SS Sheath

Number of Wires: 2

Sheath Material: 304 Stainless Steel

Thermocouple Type: N

Alloy Material (+): Nicrosil

Alloy Material (-): Nisil

Color Code Standard: ANSI

Number of Connectors: N/A

Electrical Connection: Stripped Leads

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: Thermocouple

Transition Joint Length: 1.13 in

Process Temperature, Max: 900 °C

Process Temperature, Min: 0 °C
