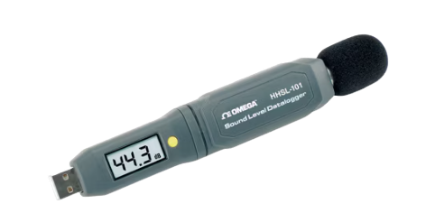

OMEGA HHSL-101 Sound Level Data Logger (30 to 130 dB)

Range: 30 to 130 dB

Resolution: 0.1 dB

Accuracy: ±1.5 dB

Memory: 32,000 data points

Communications: USB 1.0/2.0

Software: Windows XP/7/8

Sampling Rate: 125 ms, 500 ms, 1 sec, 2 sec, 5 sec, 10 sec, 60 sec (user-selectable)

Power: ½ “AA” 3.6V 1200 mAh lithium battery (included); user-replaceable

Working Current: <1 mA

Operating Temperature: 0 to 50°C (32 to 122°F)

Operating Humidity: 10 to 90% RH non-condensing

Storage Temperature (Without Battery): -10 to 50°C (14 to 122°F), 5 to 95% RH

Dimensions: 180 L x 28 H x 27 mm D (7.09 x 1.10 x 1.06')

Weight (without battery): 57 g (2.0 oz)

Comes complete with Windows software on CD, protective cap, mounting stand, USB extension cable, 3.6V lithium battery and user’s manual.
