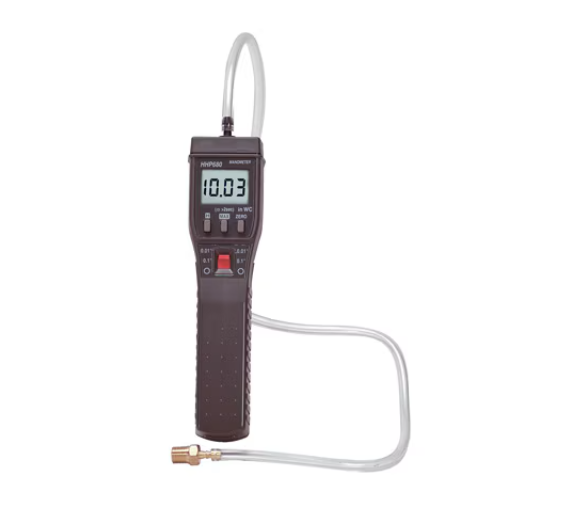

OMEGA HHP680 Basic Manometer for Ultra Low Pressure Ranges (0 - 20 inH2O)

Specifications

Display: 31/2 digit liquid crystal display (LCD) with a maximum reading of 1999

Range: 0 to 20 inH2O

Resolution: 0.01/0.1"

Low Battery Indication: displays when battery is below operating level

Storage Temperature: -20 to 60°C (-4 to 140°F), 0 to 80% R.H. with battery removed from meter

Accuracy: ±2% at 23°C (75°F) ± 5°C, <75% relative humidity

Dimensions: 190 H x 44 W x 40 mm D (7.5 x 1.7 x 1.6")

Weight: approx. 150 g (5.3 oz) including battery

Battery: 1.5 V x 4 pcs, AAA size)

Sensor: Solid state

Temperature: 0 to 40°C (32 to 105°F)

Operating Relative Humidity: 15 to 90% R.H>, non-condensing

Battery Life: 150 hours typical. No measurable current when in “off” position. Batteries included.

Compatible Media: Clean, dry non-corrosive gases

Comes complete with 60 cm (24") of tubing, fitting, 4 “AAA” alkaline batteries, soft carrying case and operator’s manual.
