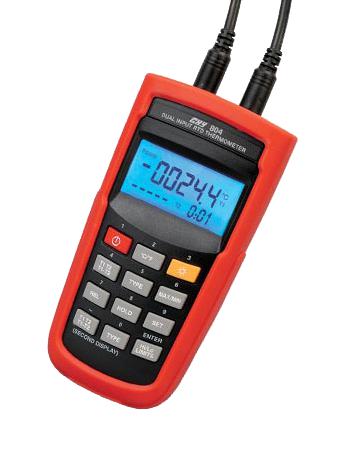

OMEGA HH804 High accuracy RTD input thermometer (-200 to 800°C)

Specifications

Measurement Range:

0.00385 (100Ω): -200 to 800°C (-328 to 1472°F)

0.003916/0.003926 (100Ω): -200 to 630°C (-328 to 1166°F)

Accuracy:

Stated accuracy at 23°C: ±0.05%, <75% RH

±(0.05% rdg + 0.2°C)

±(0.05% rdg + 0.4°F)

Input Connections: 4-pin mini on DIN

Measurement Rate: 1 time/second

Operating Environment: 0 to 50°C at <70% RH

Display: Dual 4 1⁄2 digit + Elapsed Time

Input types: Pt100 RTD

No. of Inputs: 2

Wireless: No

USB Port: No

DC Power Jack: No

Resolution: 0.1°/0.2°F

Note: All wireless units are USA, 900 Mhz frequency band versions. For European 868.0 Mhz˜868.6 Mhz frequency band versions, add suffix “E”, no additional charge.

Comes complete with HH804-CONNECTOR (one per channel), protective rubber boot, NIST certificate, 4 “AAA” batteries, and operator’s manual.
