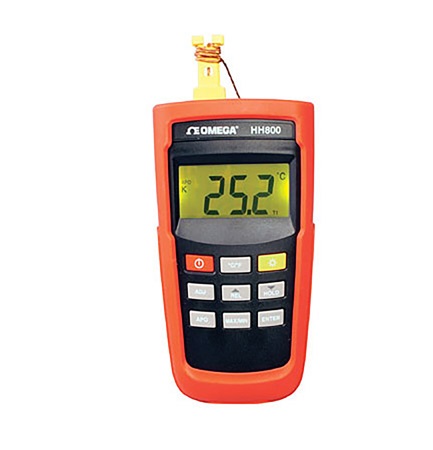

OMEGA HH800A Single input handheld thermomete (Type K: -200 to 1372°C, Type J: -200 to 1200°C, 1CH)

Common Specifications

Measurement Rate: 2.5 times/second

Operating Environment: 0 to 50°C at <70% RH

Storage Temperature: -20 to 60°C, 0 to 80% RH with battery removed

Battery: 4 x 1.5V “AAA” (included)

Dimensions: 160 H x 83 W x 38 mm D

Specifications

Measurement Range:

Type K: -200 to 1372°C

Type J: -200 to 1200°C

Accuracy: Stated accuracy at 23°C ±5°C, <75% RH ± (0.1% rdg+1°C) -200 to 1372°C

Weight: Approx 235 g including batteries

Comes with 4 “AAA” batteries, Type K thermocouple (one per channel), rubber boot and complete operator’s manual
