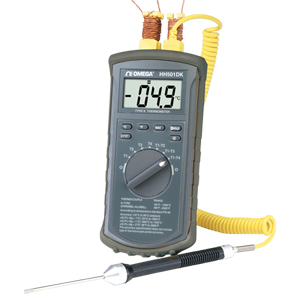

OMEGA HH501DK Four-Channel Type K Thermometer (-50 to 1300°C)

Specifications

Temperature Range: -50 to 1300°C (-58 to 1999°F)

Input: Type K thermocouple

Accuracy: ±(0.3% rdg + 1°C) for -50 to 1000°C, ±(0.5% rdg + 1°C) for 1000 to 1300°C, ±(0.3% rdg + 2°F) for -58 to 1999°F

Display: 3½ digit liquid crystal display (LCD) with maximum reading of 1999

Polarity: Automatic, positive implied, negative polarity indication

Overrange: (OL) or (-OL) is displayed

Zero: Automatic

Power: Standard 9V battery (included)

Low Battery Indication: “ ” is displayed when battery voltage drops below operating level

Measurement Rate: 2.5 times per second

Operating Environment: 0 to 50°C (32 to 122°F) @ <70% RH

Storage Temperature: -20 to 60°C (-4 to 140°F), 0 to 80% RH with battery removed from meter

Accuracy Conditions: Stated accuracy @ 23°C ±5°C, <75% RH (accuracy specification does not include Type K thermocouple probe accuracy)

Dimensions: 195 H x 92 W x 53 mm diameter (7.7 x 3.6 x 2.1")

Weight: Approximately 250 g (9 oz) including battery

Comes complete with operator’s manual, 4 beaded wire Type K thermocouples, 9V alkaline battery, NIST traceable certificate (no points) and rubber boot.
