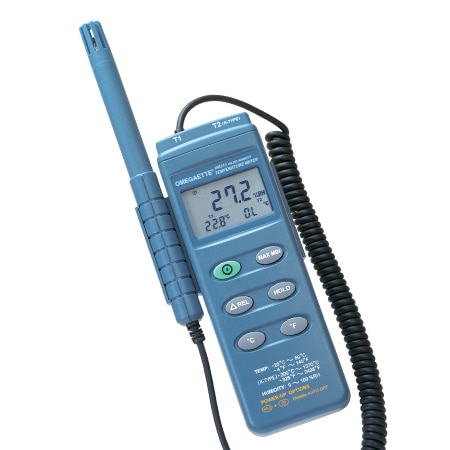

OMEGA HH311 2 Channel Handheld Humidity K Type Thermocouple Datalogger (K, USB, RS232, ± 0.7 °C)

Width: 64 mm

Height: 186 mm

Length: 30 mm

Weight: 320 g

T2 Accuracy: ± [0.5% rdg ± 1°C (2°F)]

Weight Note: Approx 320 g (11.3 oz)

Battery life: 100 hr

Display Type: LED

Probe Length: 190 mm

Plug Diameter: 3.5 x 1.35 mm

Data Interface: USB, RS232

Probe Diameter: 15 mm

Supply Voltage: 9 Vdc

T1 Response Time: 40 sec

Supply Power Note: One 9V battery (included), AC adapter 9 Vdc 10 mA minimum

Supply Power Type: AC, Battery

Thermocouple Type: K

Number of Channels: 1

Data Interface Note: RS232: 9600 bps, N, 8, 1 serial interface

T2 Temperature, Max: 1370 °C

T2 Temperature, Min: -200 °C

Temperature Accuracy: ± 0.7 °C

Additional Features 1: MIN/MAX/REL/HOLD Functions , Auto Power-Off

Electrical Connection: Miniature Male Thermocouple Connector

Probe Dimensions Note: 190 x 15 mm (7.5 x 0.6"), cable stretches to 1.5 m (5')

Humidity Response Time: 75 sec

Temperature Resolution: 0.1 °C

Temperature Sensor Type: Thermocouple

Storage Temperature Note: -10 to 60°C (14 to 140°F), 0 to 80% non-condensing

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -10 °C

Operating Temperature Note: 0 to 50°C (32 to 122°F), 0 to 90% non-condensing T1: -20 to 60 °C T2: -200 TO 1370 °C

Temperature Resolution Note: 0.1 (except T2 for -200 > T2 > 200)

Measuring Temperature Range, Max: 60 °C

Measuring Temperature Range, Min: -20 °C

Datasheet
