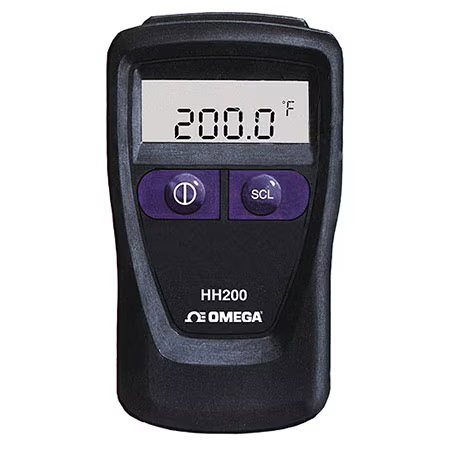

OMEGA HH200A Handheld digital Thermometer (-200 to 1372 °C (K))

Specifications

Input Connections: Standard OMEGA subminiature thermocouple connector

Cold-Junction Compensation (Thermocouple Input Models): 0.075°C/°C

Battery: 9V, type MN1604

Battery Life: 200 hours with alkaline battery

Ambient Operating Range: -30 to 50°C (-22 to 122°F)

Temperature Coefficient: 0.01% of reading/°C

Dimensions:

130 H x 70 W x 33 mm D (5.2 x 2.8 x 1.3")

Weight: 155 g (5.5 oz)

Measurement Scales: °F/°C

Display: Single 3½ digit

Input Types: J, K, T, E, R, N, S T/C

Accuracy: ±(0.25% reading + 0.2°C)

Temperature Coefficient: ±0.01% reading/°C

Number of Inputs: 1

Resolution: 0.1° to 1000°; 1° above 1000° (auto-ranging)

Input types and ranges

K Type: -200 to 1372°C / -328 to 2502°F

J Type: -210 to 1200°C / -346 to 2192°F

T Type: -250 to 400°C / -418 to 752°F

E Type: -250 to 1000°C / -418 to 1832°F

B Type: 600 to 1820°C / 1112 to 3308°F

N Type: -250 to 1300°C / -418 to 2372°F

R Type: -50 to 1767°C / -58 to 3213°F

S Type: -50 to 1767°C / -58 to 3213°F

OS36 infrared Type K thermocouple output: -50 to 249°C / -58 to 480°F

Comes complete with: Rubber holster, Operator's manual
