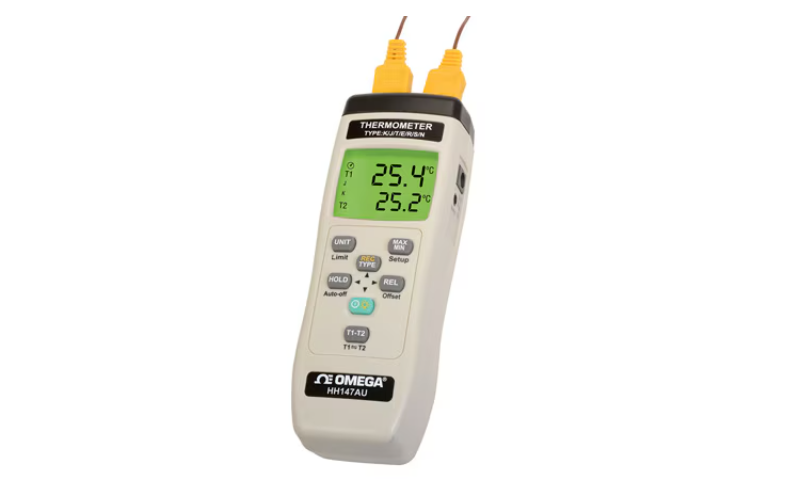

OMEGA HH147AU Thermocouple Types Datalogger (-250 ~ 1767°C)

Thermocouple Ranges:

K Type: -200 to 1372°C (-328 to 2501°F)

J Type: -210 to 1200°C (-346 to 2192°F)

T Type: -250 to 400°C (-418 to 752°F)

E Type: -210 to 1000°C (-346 to 1832°F)

R/S Type: 0 to 1767°C (32 to 3212°F)

N Type: -150 to 1300°C (-238 to 2372°F)

Resolution:

K / J / T / E / N Type: 0.1°

R/S Type: 1°

Accuracy:

K / J / T / E / N Type:

±(0.05% rdg, 0.7°C/1.4°F) ,(-250 to -100°C (-418 to -148°F))

±(0.05% rdg, 0.6°C/1°F), (-100 to 1372°C (-148 to 2501°F))

R/S Type: ±(0.05% rdg, 2°C/4°F), (0 to 1767°C (32 to 3212°F))

Temperature Coefficient: 0.01% 0.03°C of read value/°C (0.06°F/°F) outside 18 to 28°C (64 to 82°F) specified range [Under -100°C (-148°F): 0.04% of read value added to K, J, T, E, and 0.08% read value added to N]

Temperature Scale: ITS-90

Battery Life: Approximately 100 hours

Operation and Storage Temperature and Humidity: 0 to 50°C (32 to 122°F), < 80% RH

Dimensions: 155 L x 56 W x 40 D mm (6.10 x 2.20 x 1.57')

Weight: Approximately 170 g (0.37 lb)

USB PC Serial Interface: Windows® XP/7/8/10
