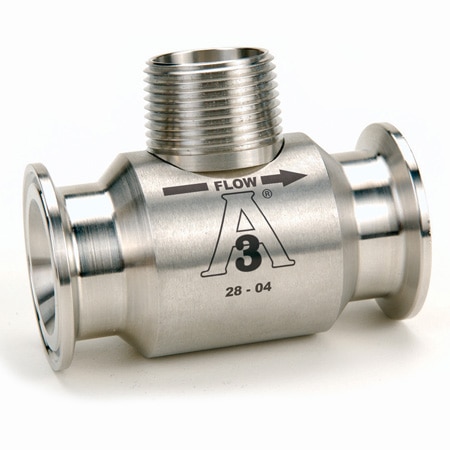

OMEGA GSCPS-150 3-A Certified Sanitary Clamp High Temperature Turbine Meters (1 1/2 in, Sanitary Clamp, 177 GPM)

Height: 2.11 in

Length: 4.59 in

Display: No Display

Accuracy: ± 0.5 %

K-Factor: 90 pulses/gal

Approvals: CIP, SIP

Design Type: Turbine

Output Detail: Choose Magnetic Pickup from Accessories

Repeatability: ±0.1%

Strainer Note: Recommended Strainer Size: 1000; Mesh Size: 18

Electrical Output: 100 to 1000 Hz

Materials, Wetted: 300 Stainless Steel, 316 Stainless Steel, CD4MCu Stainless Steel, PEEK

Media Compatibility: Liquids

Process Connection Size: 1 1/2 in

Process Connection Type: Sanitary Clamp

Volumetric Flow Rate, Max: 177 GPM

Volumetric Flow Rate, Min: 17.7 GPM

Operating Temperature, Max: 107 °C

Operating Temperature, Min: -74 °C

Datasheet
