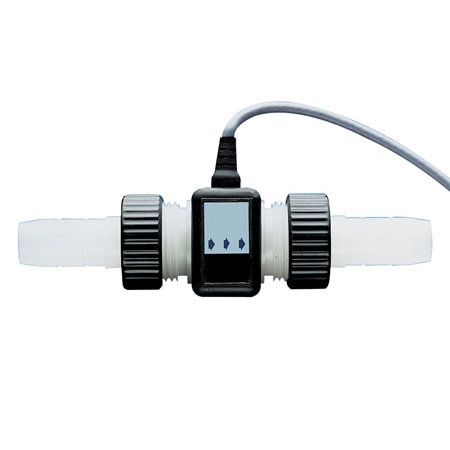

OMEGA FTB604B Plastic Flow Meters for Low to Medium Flow with Pulse Output (14 mm, Barbed Fitting, 30 l/min)

Length: 5.4 in

Accuracy: ± 1 %

K-Factor: 1200 pulses/gal

Approvals: RoHS, CE

Cable Length: 0.9 m

Repeatability: ±0.1%

Thread Length: 0.63 in

Pipe Size, Max: 0.63 in

Supply Current: 6 to 33 mA

Supply Voltage: 8 to 24 Vdc

Viscosity Range: 1 to 15 cSt

Electrical Output: Square Wave Pulse

Materials, Wetted: PVDF

Media Compatibility: Liquids

Operating Pressure Note: 150 psig at 79°C (175°F)

Operating Pressure, Max: 150 psi

Process Connection Size: 14 mm

Process Connection Type: Barbed Fitting

Volumetric Flow Rate, Max: 30 l/min

Volumetric Flow Rate, Min: 1 l/min
