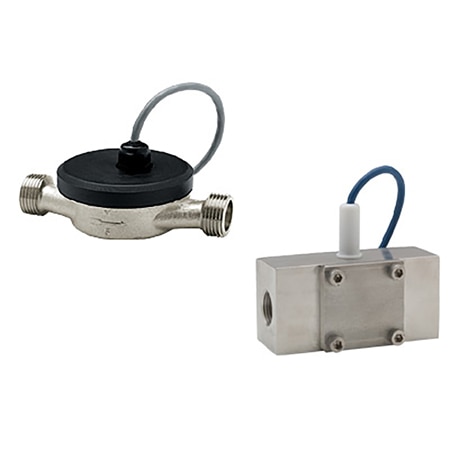

OMEGA FTB4805 Low Flow Brass & 316 SS Turbine Flow Meters (1/2 in, NPT Female, 10 GPM)

Width: 2 in

Height: 2 in

Length: 4.1 in

Accuracy: ± 1 %

K-Factor: 535 pulses/gal

Approvals: CE

Wire Gauge: 22 AWG

Cable Length: 5.5 m

Output Detail: Maximum Current: 20 mA

Output Signal: DC Pulse

Supply Voltage: 6 to 24 Vdc

Cable Length Note: 610 m

Electrical Output: Amplified Square Wave

Materials, Wetted: 316 Stainless Steel, FKM, PVDF, Ruby, TFE, Tungsten Carbide

Pressure Drop, Max: 15 psi

Media Compatibility: Liquids

Operating Pressure, Max: 500 psi

Process Connection Size: 1/2 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 10 GPM

Volumetric Flow Rate, Min: 0.1 GPM

Operating Temperature, Max: 93 °C
