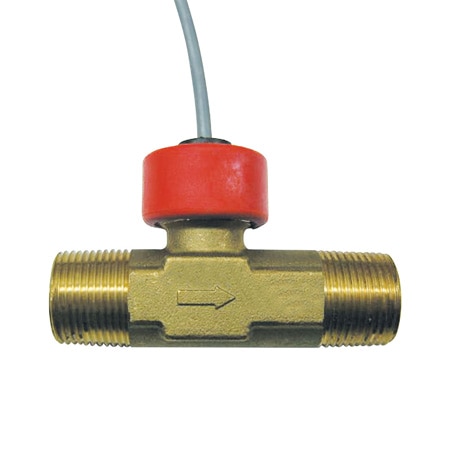

OMEGA FTB372 Brass Turbine Flow Meter for Water (1 in, NPT Male, 41.6 GPM)

Width: 1.5 in

Height: 58 in

Length: 8 in

Accuracy: ± 3 %

K-Factor: 68 Pulses/liter

Cable Length: 1.5 m

Output Signal: DC Pulse

Repeatability: ±0.5%

Electrical Output: Amplified Square Wave

Enclosure Ratings: IP54, NEMA Type 3

Materials, Wetted: Nickel Silver Alloy, CW602N, Noral, Noral, Noryl, Polypropylene, Recona28 Nickel-plated, Sapphire

Particle Size, Max: 0.508 mm

Pressure Drop, Max: 0.45 psi

Media Compatibility: Liquids

Operating Pressure, Max: 6.5 psi

Process Connection Size: 1 in

Process Connection Type: NPT Male

Volumetric Flow Rate, Max: 41.6 GPM

Volumetric Flow Rate, Min: 1.1 GPM

Operating Temperature, Max: 85 °C
