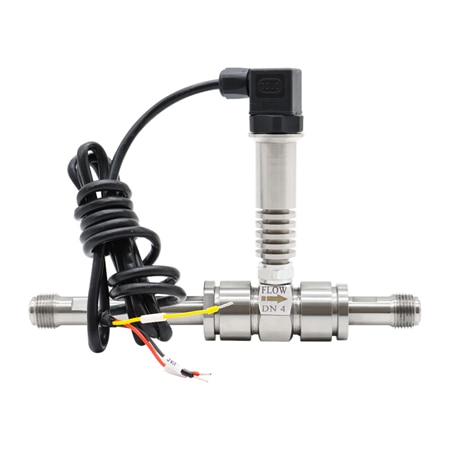

OMEGA FTB-910-P 304 SS Liquid Turbine Flow Meter, Pulse Output (1/2 in, NPT Male, 6.6 GPM)

Accuracy: ± 0.5 %

Output Detail: dc_pulse output, There has three terminals, POUT, 24VDC+ and 24VDC-, connect other instruments.

Output Signal: DC Pulse

Repeatability: ±0.1%

Certifications: CNAS Traceable Calibration (Water)

Supply Voltage: 12 to 24 Vdc

Electrical Output: Amplified Square Wave

Materials, Wetted: 304 Stainless Steel, 316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Media Compatibility: Liquids

Additional Features 1: 2M Cable, 8 Blade CD4MCU Stainless Steel Rotor

Operating Pressure, Max: 913.5 psi

Process Connection Size: 1/2 in

Process Connection Type: NPT Male

Volumetric Flow Rate, Max: 6.6 GPM

Volumetric Flow Rate, Min: 0.66 GPM

Datasheet
